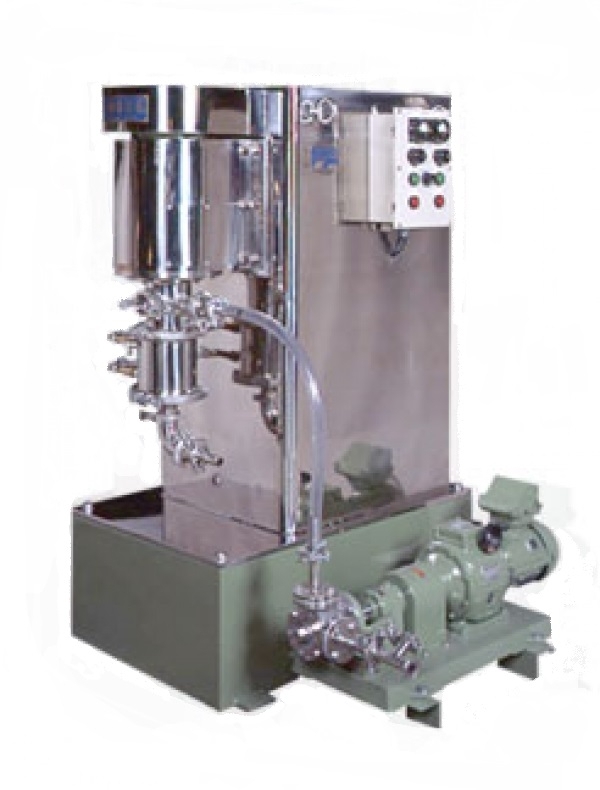

Key Mill (Continuous Type)

Outline

Specially designed rhombic pattern surface, a large capacity of circulation flow volume, and capability of handling an extensive bead-size variety enable ultrafineparticulation.

A complete media mill, the Inoue Key Mill (continuous type) covers a wide range of applications in this 21st century high-technology industry.

The Inoue Key Mill (continuous) offers

・Ultra-fine dispersion

・Dispersion and avoidance of its mill base or solid/liquid slurry that rests in pipe and circulation lines

The Inoue Key Mill (continuous) can flow beads and solid/liquid slurry to the dispersing area utilizing a screw effect generated by a spike-shaped rotor. Its utilization of centrifugal force saves energy, enabling massive discharge as a built-in function to the pump. This leads to wet milling and dispersion up to ultra-fine.

Standardized and set to the best peripheral speed, the spike-shaped rotor and variable speed gives the best annular energy, between 1-14m/sec to he slurry/mill base and beads, in proportion with the nature of the slurry/mill base. Micro beads as small as 0.1mm diameters are chosen, depending on the mill base separator. Beads of glass, alumina, titania, zirconia, etc., in diameter of 0.1-2.0mm can be selected as a standard. The charging ratio of beads is 80%-90% of the vessel’s dispersion area.

Features

■Completely Enclosed Vessel

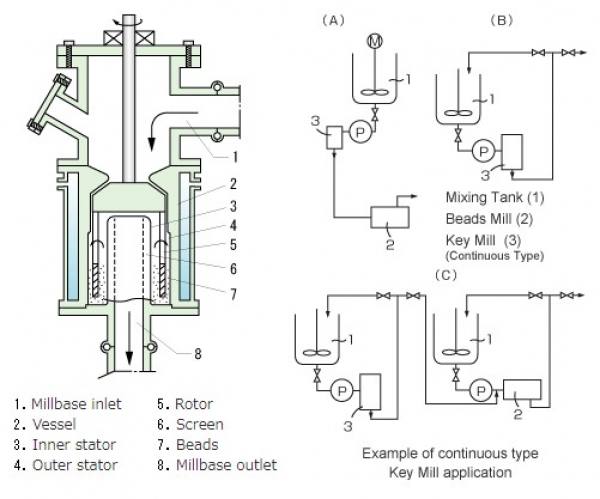

The ring-like movement of the Inoue Key Mill (continuous) provides clearance between the vessel with a jacket and rotor to the slurry/mill base and beads in a double cylinder. The rotor revolves while milling, sharing, and dispersing force given by the special design shape on the surface of its rotor. A sketch on the previous page shows an application example of slurry/mill base tank and Inoue Key Mill (continuous).

■Ultra-fine Dispersion

Crash and impact force is used in the slim clearance where the most effective dispersion and milling are done. The feeding application enables a big volume of flow and circulation to reach the ultra-fine dispersion.

■Application Viscosity range

The applicable viscosity range for the Inoue Key Mill (continuous) is up to about 2 Pa.s. By adopting a wide area of screen for beads separation and annular design, the Inoue Key Mill makes it possible for its users to save costs of operation with small quantity beads charging.

■Cooling Efficiency

A very high cooling efficiency is established by the innovative structure of the vessel.

■Cleaning

The annular shaped rotor minimizes clearance of the vessel, enabling the reduction of residence space inside the vessel, minimizing cleaning time.

■Circularion Flow Volume（Discharge）

Even when micro beads are used, the Inoue Key Mill has a large capacity circulation flow volume.

■Supplemental Benefits

Power consumption is saved during premixing for beads mill with the Inoue Key Mill. Its design helps avoid sedimentation and secondary condensation in the slurry/mill base pipeline.

Type	Morter kw	Vessel	Flow rate of Discharge ℓ/HR
KMC-0.5	7.5,11	0.7	～1000
KMC-1	11,15	1.3	～2000
KMC-3	22,30	3.5	～6000

※This is approximate numerical number at using Φ1.0mm Zirconia Beads and 1Pa･s viscosity.

※Please note that specifications and measurement may change without prior notice due to improvement.
