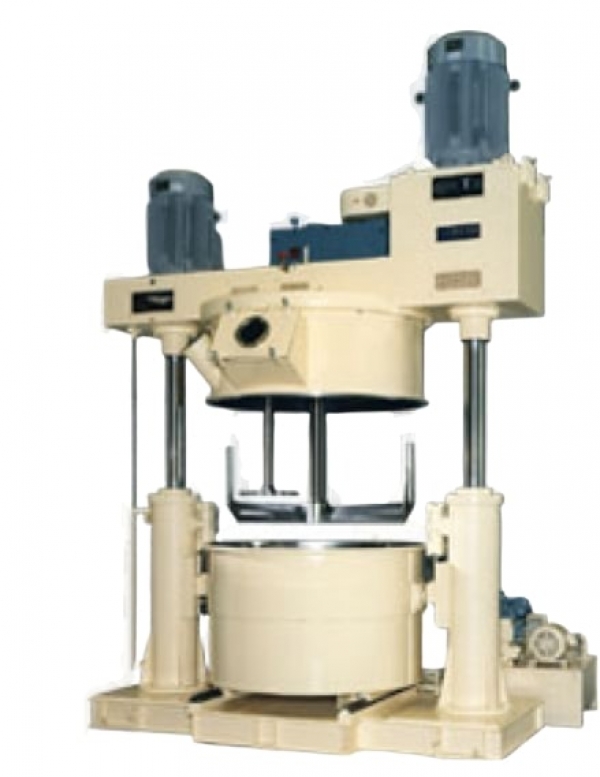

BDM Twin Shaft Mixer

Outline

Combination of the features of a high-speed dissolver blade that produces high shear force and a low-speed butterfly blade for high-viscosity materials produces quick, high-performance, mixing, kneading, and dispersion.

The INOUE BDM TWIN MIXER combines the features of a high-viscosity, low-speed butterfly mixer and a high-speed, high-speed dissolver to produce quick, high-performance, mixing, kneading, and dispersion. The option BDMG model is also available.

Type Morter
(kw)
Tnak
(ℓ)
High-speed
axis
Low-speed
axis
Hydraulic Capacity Processing
capacity
BDM-400 18.5 11 2.2 400 240
BDM-800 30 18.5 2.2 800 480
BDM-1200 37 22 3.7 1,200 750
BDM-1600 45 30 3.7 1,600 1,000

※Please note that specifications and measurement may change without prior notice due to improvement.
